Turbine desulfurization pair clip butterfly valve
Product model: D371J-16Q
Nominal diameter: DN40 ~ 2000mm
Nominal pressure: PN0.6 ~ 1.6Mpa
Applicable temperature: ≤ 80 ℃
Applicable media: water, steam, oil, weak acid and alkali, etc
Main materials: cast iron, carbon steel, stainless steel, etc
Driving mode: manual, worm gear, pneumatic, electric
Design standard: GB /T12238-2008, ISO 10631-1994
Flange connection: GB/T17241.6-2008, JIS B2212-b2214-1999, JIS B2220-2004, JIS B2210-1984, ANSI B 16.5-2009, ANSI B 16.47-2006, ISO 7005-2
Structure length: GB/T12221-2005, IS0 5752-1988sbsen558-1
Pressure test: GB/T13927-2008, JB/T9092-1999, ISO 5028-1993 or BS 5755-1-1986
Product details

II. Turbine desulfurization clamping butterfly valve specific product model:

1, clamping soft seal butterfly valve: d71x-16c, D371X, D671X, D971X double eccentric butterfly valve clamping hard seal: d73h-25, D373H, D673H, D973H, etc.

2, flange soft seal butterfly valve: d41x-16q, D341X, D641X, D941X flange hard seal double eccentric butterfly valve: d43h-25, D343H, D643H, D943H, etc

3. Telescopic flanged butterfly valve sd341x-16, butt welded metal hard seal butterfly valve DT363H ventilation butterfly valve d41w-16c, etc.


II. D371j-10 turbine desulfurization clamping butterfly valve is strictly produced according to the national standards:

1. Design/manufacturing standard: GB/T12220

2. Structural length standard: GB/T12221

3. Connection flange standard: JB/T79

4. Inspection/test standard: GB/T13927


III. Inquiry/order process of d371j-10 turbine desulfurization clamped butterfly valve


1. The customer shall inform us of the purchase list by fax/email or telephone.

2. Provide customers with model selection and quotation (price list) within the shortest time.

3. Specific negotiation: delivery date, special requirements and other related matters.

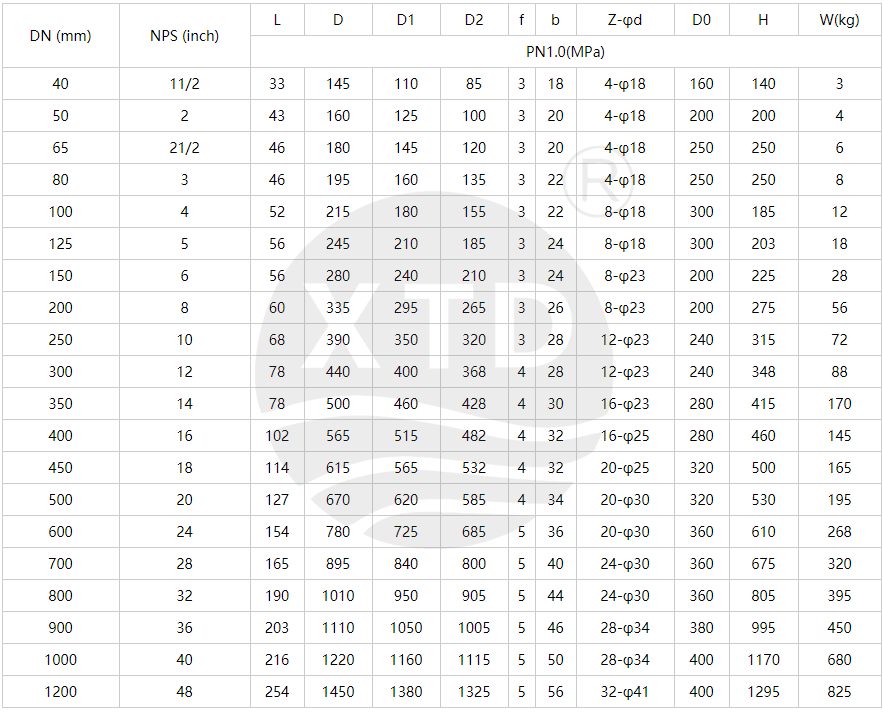

Iv. D371j-10 turbo-desulfurization butterfly valve main connection size and weight:
