Nominal diameter: NPS 2 "~ 24"
Nominal pressure : CL150 ~ 2500Lb
Temperature: -29 ~ + 425 ℃, -40 ~ + 200 ℃ Stainless Steel
Body Material: carbon steel, stainless steel
Operation: manual, bevel gear, motor
Design and manufacture: ANSI B16.34 BS1873
Structural length: ANSI B16.10
Flange dimensions: ANSI B16.5
Pressure - temperature: ANSI B16.34
Test and Inspection: API 598
American Standard Cast Steel Globe Valves product overview
Flange connection steel American standard globe valve for ANSI Class150 ~ 600. Operating temperature -29 ~ + 425 ℃ (carbon steel), - 40 ~ +200 ℃ (stainless steel) of the various pipelines. It is used to cut off or connect the medium in the pipeline. It can be applied to a variety of media such as water, steam, oil, nitric acid, acetic acid, strong oxidizing medium and urea through the selection of different materials.
American Standard Cast Steel Globe Valves structure characteristics
1, American Standard Cast Steel Globe Valves product design and manufacture in line with the US standard ASME B16.34 and other foreign advanced standards.
2, the valve body shape spherical or streamlined, handsome in appearance, the shape of the runner through-type, fluid resistance.
3, the closure of the closure valve (valve) and the valve seat sealing surface with a tapered seal, the closing force is small, erosion-resistant, reliable seal.
4, the valve seat for the replacement of the valve seat, can be any combination of material with the closure of the sealing surface matching, to meet the requirements of a variety of conditions, to extend the service life.
Standard STD
| Design and manufacture | Structure length | Flange size | Butt welding connection size | Pressure - Temperature | Test - test |
| ANSI B16.34 BS1873 | ANSI B16.10 | ANSI B16.5 | ANSI B16.25 | ANSI B16.34 | API 598 |
Pressure test
| Nominal pressure PN (Lb) | Strength test | Water seal test | Gas seal test | |||
| MPa | Lbf / in2 | MPa | Lbf / in2 | MPa | Lbf / in2 | |
| 150 | 3.0 | 430 | 2.2 | 315 | 0.4-0.7 | 60-100 |
| 300 | 7.7 | 1110 | 5.7 | 815 | ||
| 600 | 15.3 | 2220 | 11.3 | 1630 | ||
| 900 | 23.0 | 3330 | 17.0 | 2445 | ||
| 1500 | 38.4 | 5560 | 28.2 | 4080 | ||
| 2500 | 64.0 | 9255 | 47.0 | 6790 | ||
American Standard Cast Steel Globe Valves of the main parts of the material and performance
| Body, cover | Valve stem | Sealing surface | Gasket (ring) | filler | Operating temperature | Suitable media |
| WCB | 2Cr13 |
13Cr STL wood material nylon |
Reinforced Flexible Graphite 13Cr / Flexible Graphite SFB-2 08 Soft Steel F304 F316 F304L F316L |
Flexible graphite reinforced flexible graphite SFB / 260 SFP / 260 PTFE |
≤425 |
Steam oil products |
| WC1 | 38CrMoAl 25Cr2MoV | ≤425 | ||||
| WC6 | ≤540 | |||||
| WC9 | ≤570 | |||||
| C5 C12 | ≤540 | |||||
| CF8 | F304 | ≤200 |
Nitric acid and urea urea |

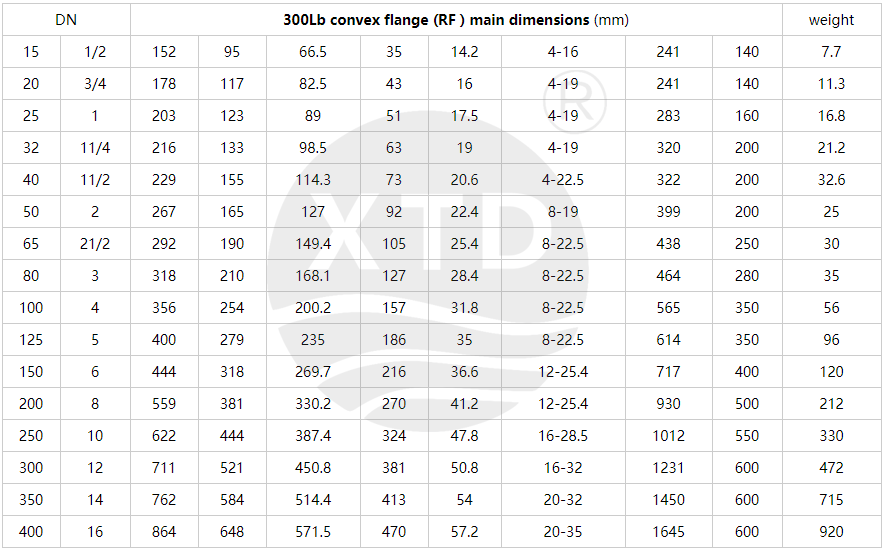

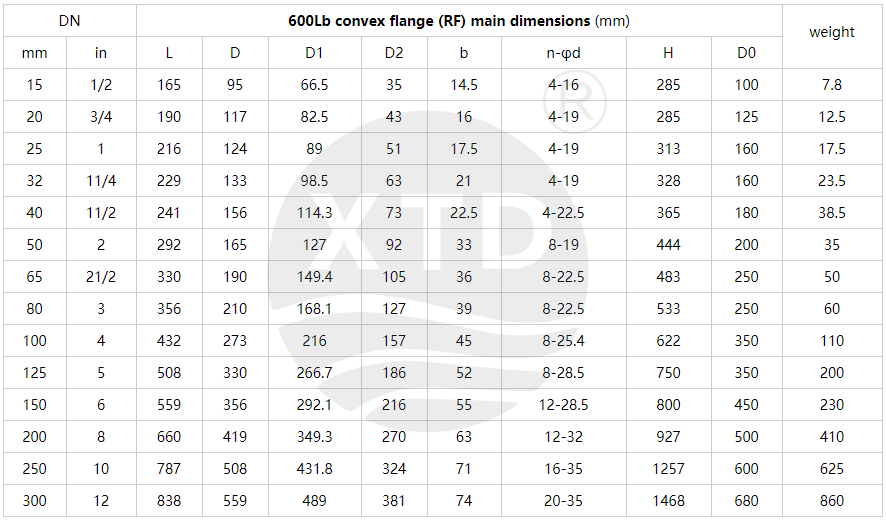

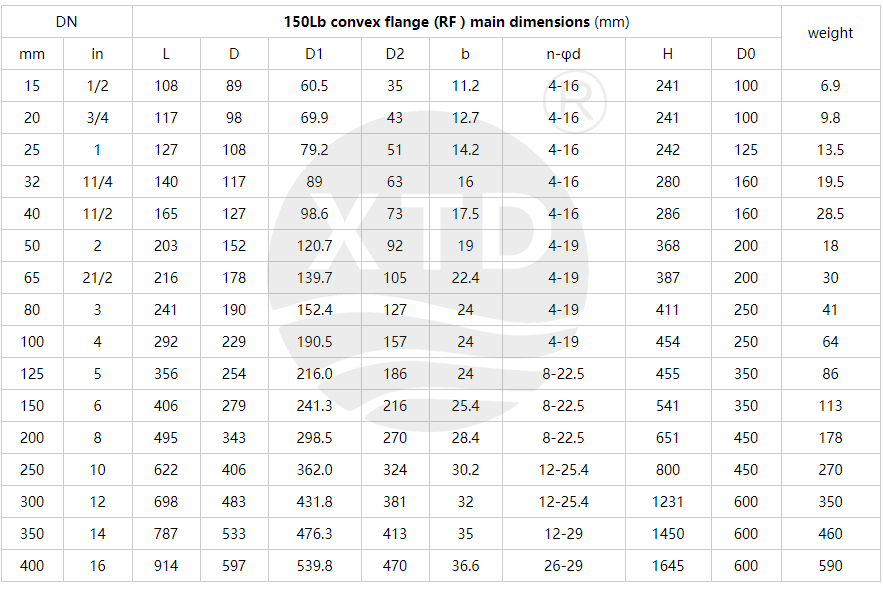

American Standard Cast Steel Globe Valves main dimensions and weight
