Electric V-ball valve
Model: VQ947H
Nominal diameter: DN25 ~ 300mm
Nominal pressure: PN1.6 ~ 4.0MPa
Main material: WCB, 304,316
Connection: Wafer, flange
Flange Standard: GB, ANSI, DIN, JIS
Electric actuator: switching, regulation, explosion proof
Design and manufacture: GB / T12237 / 1989, ASME B16.34, API608
Length of the structure: GB / T12221, ASME B16.10
Connection dimensions: GB 9113.1, ASME B16.5
Test standard: GB / T13927-1992, API 598, API6D
Product details

【VQ947H / VQ977H electric V-type ball valve - Product Description】

Electric V-ball valve with a cylindrical spring preloaded compensated movable metal seat structure, sealing performance and reliable. Core and valve seat will not produce jamming or detachment, long service life. The V-shaped cutout on the core has a shear effect with the metal seat, especially suitable for controlling medium with high viscosity, fiber, solid particles and slurry. Paper pulp industry structure is particularly superior. Valve flow capacity, pressure loss is small, and the medium will not be deposited in the valve body cavity, the valve not only has a similar ratio of flow characteristics, adjustable range, the maximum adjustable ratio of 100: 1, but also with accurate Adjustment and reliable positioning of the function.

[VQ947H / VQ977H electric V-type ball valve - the main parts material]

Part Name

Material

Body, bonnet

WCB

CF 8

Sealing ring

2Cr13 + Nitriding

304 + nitriding

Sphere

2Cr13 + hard grid

304 + hard grid

Seat, stem

2Cr13

304

Gasket

Flexible graphite + stainless steel

Flexible graphite + stainless steel

Studs

35CrMoA

1Cr18Ni9Ti


 [VQ947H / VQ977H electric V-type ball valve - the main performance specifications]

Nominal pressure

Test pressure (MPa)

Suitable media

proper temperature

Shell test

Seal test

1.6

2.4

1.76

Water, oil, gas and high viscosity,
       fiber, solid particles and other media

-28 ℃ ~ ≤550 ℃

2.5

3.75

2.75

4.0

6.0

4.4

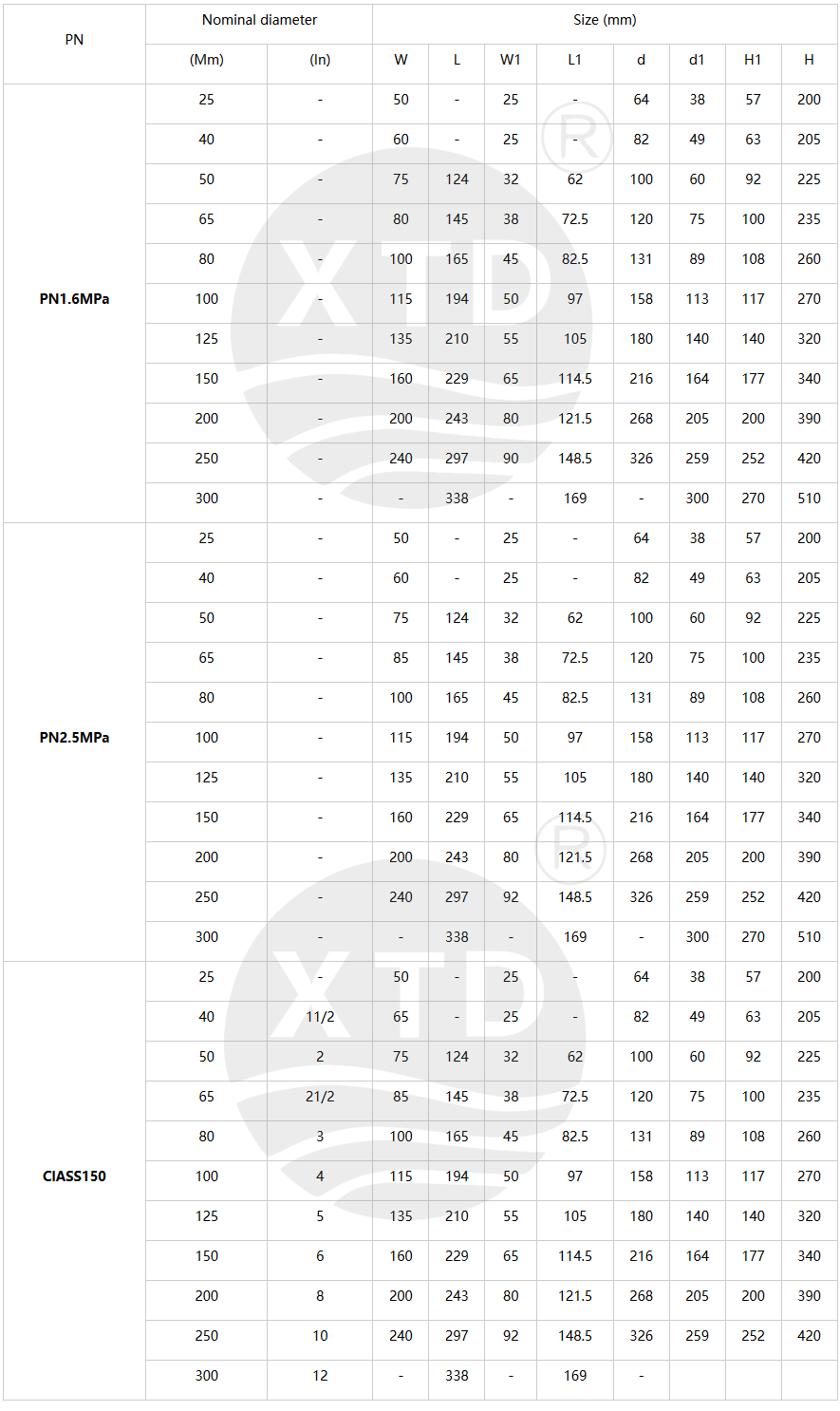

 [VQ947H / VQ977H electric V-type ball valve - the main dimensions]
