Nominal diameter: DN15 ~ 200mm
Nominal pressure: PN1.6 ~ 4.0MPa
Operating temperature: PTFE¡Ü150 ¡æ PTL¡Ü300 ¡æ
Medium: C: water, oil and gas; P: nitric acid; R: acetic acid class
Main material: WCB, CF8
Design specifications: GB / T 12237 API 6D API 608 BS 5351
Structure length: GB / T 12221 ASME B16.10
Flange connection: GB / T 9113 ASME B16.5
Test and test: GB / T 13927 API 598 API 6D
First, the pneumatic three-way ball valve
Pneumatic three-way ball valve can be divided into L-shaped pneumatic
three-way ball valve and T-shaped pneumatic three-way ball valve,
L-shaped (Q44F) three-way ball valve for medium flow switching, Channel
connection; T-shaped (Q45F) three-way ball valve for medium diversion,
confluence and flow switching. T-tee can make the three channels
connected to each other or the two of the channels. Three-way ball valve
generally use two seat structure, can also be used according to user
requirements four seat structure.
Second, pneumatic three-way ball valve performance parameters
| test pressure | Nominal pressure (Mpa) | ||||
| Mpa | 1.6 | 2.5 | 4.0 | CL150 | JIS10K |
| Strength test | 2.4 | 3.8 | 6.0 | 3.2 | 2.4 |
| Seal test | 1.8 | 2.8 | 4.4 | 2.2 | 1.5 |
| Airtight test | 0.5-0.7 | ||||
| Operating temperature | PTFE¡Ü150 ¡æ PTL¡Ü300 ¡æ | ||||
| Suitable media | C: water, oil and gas; P: nitric acid; R: acetic acid | ||||
Third, pneumatic three-way ball valve parts of the main material
| Body, bonnet | WCB, CF8 |
| Sphere | WCB Hcr, CF8 |
| Valve stem | 2Cr13, CF8 |
| Seat | PTFE |
| filler | PTFE |

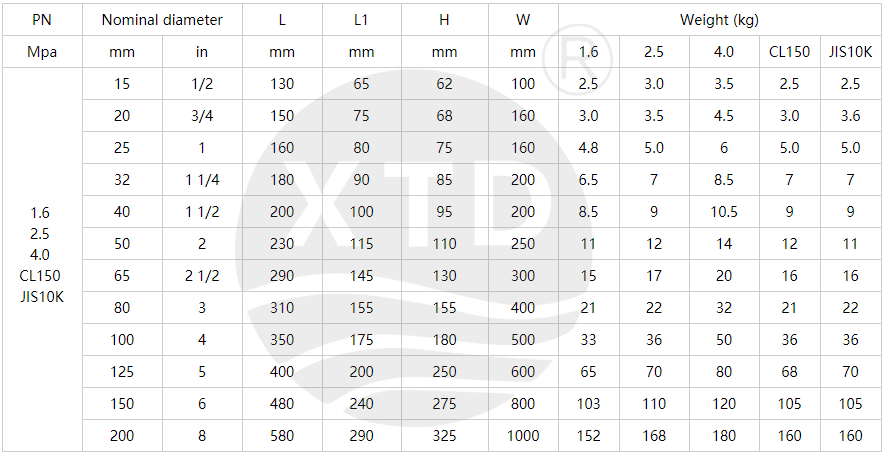

Fourth, pneumatic three-way ball valve main dimensions
