High pressure gate valve
Model: Z541Y
Nominal diameter: NPS 2 "~ 32"
Nominal pressure: 900LB
Body Material: Cast Steel A216, WCB (Carbon Steel); Stainless Steel (CF8, CF8M, CF3M, CF3);
Drive: electric, pneumatic, hydraulic and gear
Design and manufacture: API600
Inspection and testing: to API598
Flange dimensions: ASME B16.5
Welding size: ASME B16.25
Structural length: ASME B16.10
Temperature reference: ASME B16. 34
Product details

Product description:

American standard valve is used as a cut-off medium, the entire circulation straight through the full open, this time the pressure loss of medium operation minimum. API gate valve Steel flanged gate valve is usually suitable for not require frequent opening and closing, and keep the gate fully open or fully closed conditions, not suitable for use as regulation or throttling. For high-speed flow medium, American standard gate valve gate in the local open condition can cause gate vibration, and vibration may damage the gate and valve seat sealing surface, and throttling the gate will suffer media erosion. The main difference from the structural form is the form of the sealing element used.


Use and performance specifications

1.1 Uses:

a, This product is mainly used for gas, liquid medium for the hoist pipe, connect or cut off the media flow, does not apply to regulate the flow of media. With a small flow resistance, opening and closing more effort and so on.

b, the scope of application: chemical, petroleum, metallurgy, papermaking, pharmaceutical and other industries.

1.2 Performance Specifications:

test pressure Pressure Level 150Lb 300Lb 600Lb 900Lb MPa
Shell test 3.0 7.5 16.5 22.5
Gas seal test 0.6 0.6 0.6 0.6
Seal test 2.2 5.5 12.1 16.5
Seal test 2.2 5.5 12.1 16.5
Use range
Valve material Applicable temperature (℃) Suitable media
WCB -29 ° C to 425 ° C Water, steam, oil and so on
WC6 -29 ° C to 540 ° C Water, steam, oil and so on
ZG1Cr5Mo -29 ° C to 550 ° C Water, steam, oil and so on
CF8 ≤200 ℃ Nitric acids, weakly corrosive gases or liquid media
CF3 ≤200 ℃ Acetic acid, weak corrosive gas or liquid medium


Valve main parts material:

Body Material Parts Material

Body, bonnet, gate

Valve stem

filler

WCB WCB F6a Flexible graphite
WC6 WC6 38CrMoALA Flexible graphite
ZG1Cr5Mo ZG1Cr5Mo 38CrMoALA Flexible graphite
CF8 CF8 F304 Flexible graphite
CF3 CF3 F316 Flexible graphite

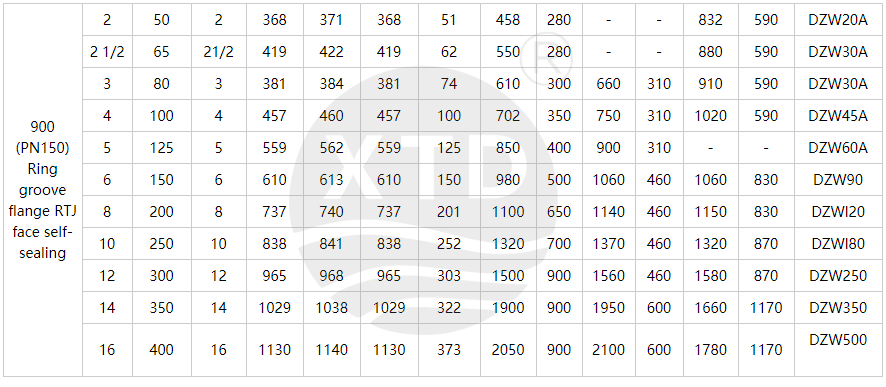

Product appearance and structure size:



产品外形及结构尺寸：
